Invisible by day.
Brilliant by night.
HiggsMotion Crystal LED Film transforms any glass surface into a vivid high-impact digital display.
Crystal LED Film Display System
The Technology

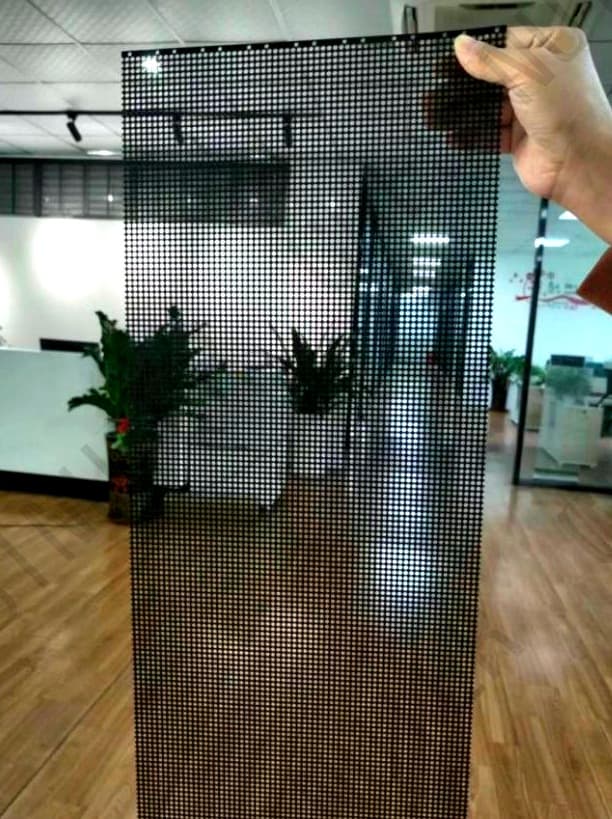

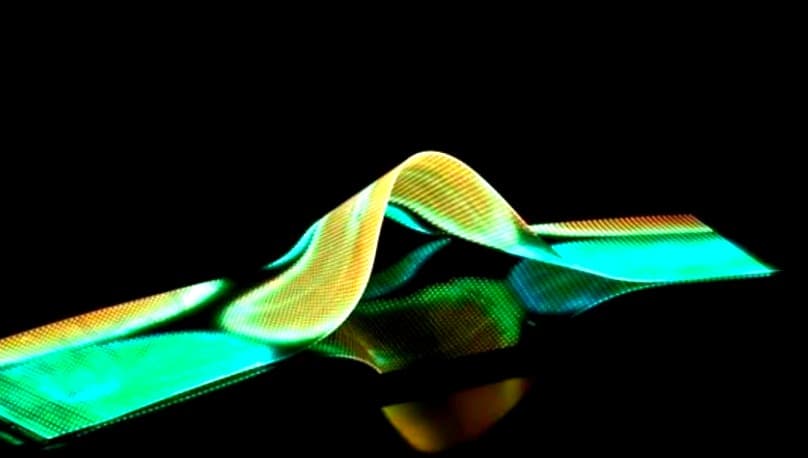

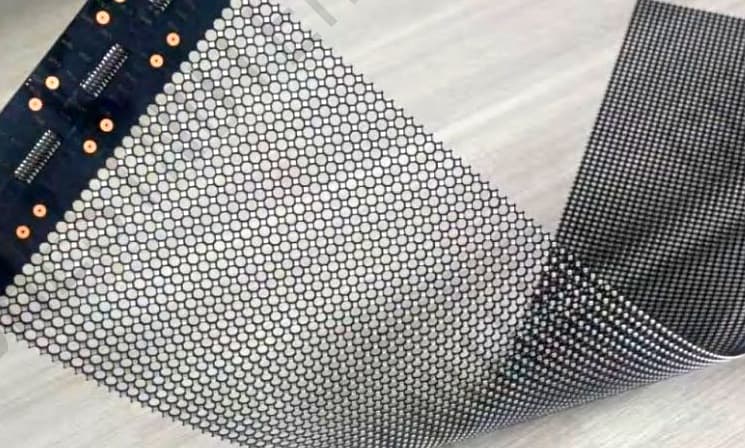

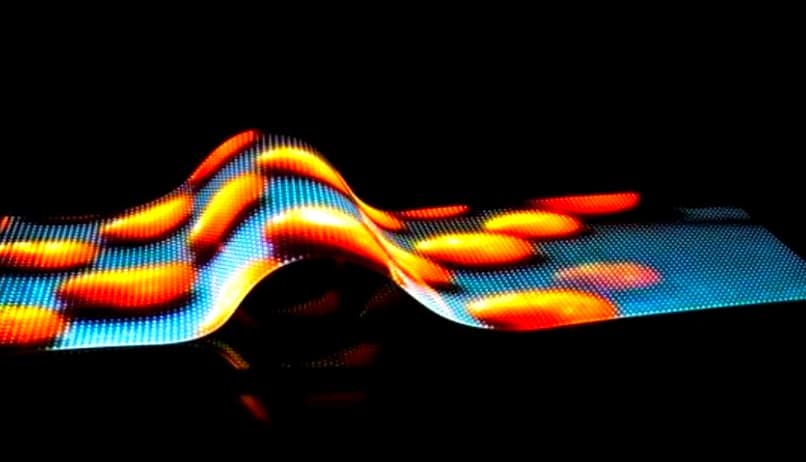

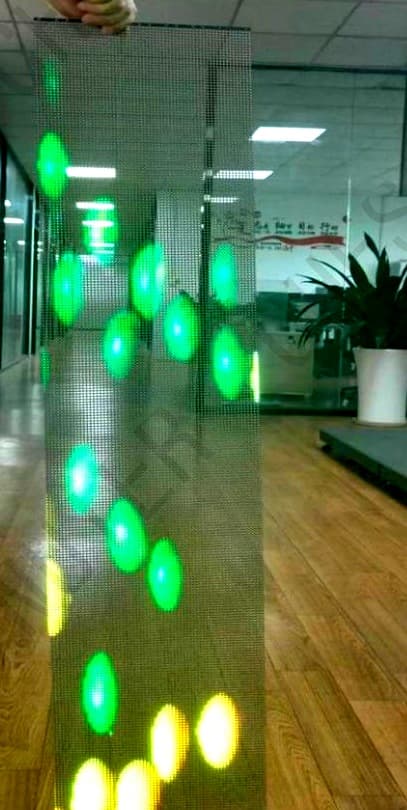

Crystal LED Film — up close.
Three resolutions. One transparent vision.
All specifications sourced from Chestnuter SF series. Common to all options: refresh rate ≥3,840Hz · LED lifespan ≥100,000hrs · module size 240×1065mm · Novastar control system.
Premium Resolution
- Pixel Pitch4mm × 4mm
- Pixel Density62,500 dot/m²
- Transparency> 82%
- Brightness1,500 cd/m²
- Optimal Viewing≥ 4m
Ideal for entrance displays and close-viewing showcase
Request Proposal →Balanced Quality
- Pixel Pitch6mm × 6mm
- Pixel Density27,778 dot/m²
- Transparency> 85%
- Brightness3,000 cd/m²
- Optimal Viewing≥ 6m
Best balance of brightness and image quality for retail display
Request Proposal →Large Format
- Pixel Pitch10mm × 10mm
- Pixel Density10,000 dot/m²
- Transparency> 90%
- Brightness2,000 cd/m²
- Optimal Viewing≥ 10m
Highest transparency — ideal for large open retail and atrium spaces
Request Proposal →Pricing
Every installation is unique.
Pricing depends on screen size, pixel pitch, site conditions, and installation complexity. Contact our authorised distributor for a tailored quotation — typically delivered within 24 hours.
Best for large open retail spaces with wide viewing angles.
- Pixel Density10,000 dot/m²
- Transparency> 90%
- Brightness2,000 cd/m²
- Optimal Viewing≥ 10m
- Refresh Rate≥ 3,840 Hz
- LED Lifespan≥ 100,000 hrs
Custom quotation · 24-hour turnaround
Get a Quote →Highest brightness in the range. Ideal for retail showcase and promotional display.
- Pixel Density27,778 dot/m²
- Transparency> 85%
- Brightness3,000 cd/m²
- Optimal Viewing≥ 6m
- Refresh Rate≥ 3,840 Hz
- LED Lifespan≥ 100,000 hrs
Custom quotation · 24-hour turnaround
Get a Quote →Highest pixel density for entrance displays and close-up viewing.
- Pixel Density62,500 dot/m²
- Transparency> 82%
- Brightness1,500 cd/m²
- Optimal Viewing≥ 4m
- Refresh Rate≥ 3,840 Hz
- LED Lifespan≥ 100,000 hrs
Custom quotation · 24-hour turnaround
Get a Quote →Factors that affect price
- Screen size and total area (sqm)
- Pixel pitch selection
- Site access and installation complexity
- Number of screens / locations
What's included
- LED film screen modules
- Novastar control system
- All cables and accessories
- Installation, testing & commissioning
Lead time
- Quotation: within 24 hours
- Production: 20–25 working days
- Delivery: to site
- Warranty: 1 year, local support
Why HiggsMotion
LED glass that finally feels made for architects, not ad tech.
Clarity at any distance
Three calibrated pixel pitches tuned for storefronts, atriums, and large-format façades. P4 reads cleanly from 4 metres; P10 commands attention across 10 metres or more.
Architecture-first engineering
Slimline framing, high transparency, and neutral off-state glass keep your façade honest to the original design language—even when the display is dark.
Operationally simple
Solid-state electronics, remote health monitoring, and replaceable modules mean your operations team treats the wall like infrastructure, not an experiment.
Applications
Every glass surface is a canvas.
HiggsMotion Crystal LED Film installs on any flat glass surface — no frame, no structural changes. From single shopfront windows to large-scale architectural façades.
Commercial Windows
Retail & Chain Stores
Transform storefront glass into a dynamic promotional display. Ideal for fashion, F&B, telco, electronics, and chain store windows — no frame, no obstruction, full transparency when off.
Shopping Mall Atria
Guardrails & Partitions
Glass guardrails on upper floors and open atrium partitions become full-colour display surfaces — without blocking sightlines or affecting building lighting.
Business Entrances
Hotels, Offices & Lobbies
Automatic glass doors and lobby windows at hotels, office buildings, airports, and transit hubs. Welcoming visuals without compromising transparency or natural light.
Glass Curtain Walls
Architectural Façades
Large-scale façade installations for shopping centres, entertainment venues, hotels, and business parks. Maximum visual impact from street level, maintains building aesthetics.
Interior Partitions
Offices & Showrooms
Glass partition walls inside enterprises, automotive showrooms, boutiques, franchises, and exhibition centres — branded without renovation.
Exhibition Displays
Events & Launches
Temporary or permanent installations for trade shows, product launches, car shows, investment roadshows, and real estate openings. Lightweight and fast to deploy.
Commercial Escalators & Lifts
Transit Spaces
Escalator glass panels and observation lift shafts in business centres, malls, hotels, and airports. High-dwell-time audiences, maximum exposure.
Ceiling Hanging Displays
Atriums & Large Venues
Free-hanging transparent LED screens in convention centres, showrooms, and large retail atria. Visible from multiple directions, no floor space required.
Reference Installations
Deployed across retail, architecture, and events.
| Venue | Location | Date | Specification | Application |
|---|---|---|---|---|
| Beauty & Wellness Centre | Shandong, China | May 2024 | P8 · 240×960mm · 11.52 sqm | Commercial Window |
| International Automotive Expo | Beijing, China | May 2024 | P10 · 240×1000mm · 12 sqm | Exhibition Display |
| Urban Metro Station Entrance | Shenzhen, China | Jun 2024 | P8 · 240×1400mm · 26.88 sqm | Glass Curtain Wall |
| Science Innovation Centre | Changchun, China | Aug 2024 | P6 · 240×1200mm · 200 sqm | Interior Partition |
| Tourism & Cultural Centre | Hunan, China | Oct 2024 | P8 · 240×1200mm · 28 sqm | Exhibition Display |
| Corporate Technology Showroom | Beijing, China | Dec 2024 | P6 · 240×1500mm · 60 sqm | Glass Curtain Wall |
Reference installations are indicative of product capabilities across similar applications. Custom sizes available for all scenarios — contact us for a site-specific proposal.
Ready to bring HiggsMotion to your space?
Contact our authorised distributor EMI Automation for a tailored proposal.
